sgcWebSockets Authorizations
The sgcWebSockets library supports multiple authentication methods to secure WebSocket communication in Delphi and C++Builder applications. Since the WebSocket protocol itself doesn't define an authentication mechanism, sgcWebSockets implements its own set of techniques suitable for both server and client sides.
Supported Authentication TypesThe library supports the following main authentication methods:
- Session Authentication
- URL Authentication
- Basic Authentication
- OAuth2
- JWT (JSON Web Tokens)
- WebAuthn (Web Authentication)
1. Session Authentication
The client performs an HTTP GET request to receive a session token:
http://host:port/sgc/req/auth/session/:user/:password
The server responds with a token, which is then used in the WebSocket URL:
ws://host:port/sgc/auth/session/:token
Properties
Authentication.Enabled := True;
Advantages
- Token-based access makes it secure and simple.
- Suitable for applications with a login system.
Example
Client.URL := 'ws://localhost:443/sgc/auth/session/your-token';
2. URL Authentication
Credentials are included directly in the WebSocket URL:
ws://host:port/sgc/auth/url/username/password
Advantages
- Very simple to implement.
- Compatible with browser-based WebSocket clients.
Disadvantages
- Credentials are exposed in the URL.
- Should only be used with SSL/TLS.
3. Basic Authentication
Uses the standard HTTP Authorization header:
Authorization: Basic base64(user:password)
Properties
Authentication.AuthUsers := 'user=password';
Use the OnAuthentication event for custom validation.
- Simple and familiar.
- Server manages a list of valid users.
Example
procedure WSServerAuthentication(Connection: TsgcWSConnection; aUser, aPassword: string; var Authenticated: Boolean);
begin
if (aUser = 'John') and (aPassword = '1234') then
Authenticated := True;
end;
4. OAuth2 Authentication
OAuth2 is supported through components such as TsgcHTTP_OAuth2_Server and TsgcHTTP_OAuth2_Client.
It works with providers like Google, Microsoft, Azure AD, and custom identity systems.
- OnOAuth2Authentication
- OnOAuth2AfterAccessToken
- Modern and secure.
- Well-suited for web applications and cloud environments.
5. JWT Authentication
Authentication is performed using JSON Web Tokens (JWT). Tokens can be passed either in the query string or in HTTP headers.
PropertiesAuthentication.TokenParam := srctQuery
Authentication.TokenParam := srctHeader
Components: TsgcHTTP_JWT_Client, TsgcHTTP_JWT_Server
Advantages- Stateless and scalable.
- Widely adopted, integrates easily with external services.
6. WebAuthn Authentication
WebAuthn is based on the FIDO2 standard and uses public key cryptography. It enables passwordless authentication.
ComponentsTsgcWSAPIServer_WebAuthn
Advantages- Very strong security.
- Resistant to phishing and credential theft.

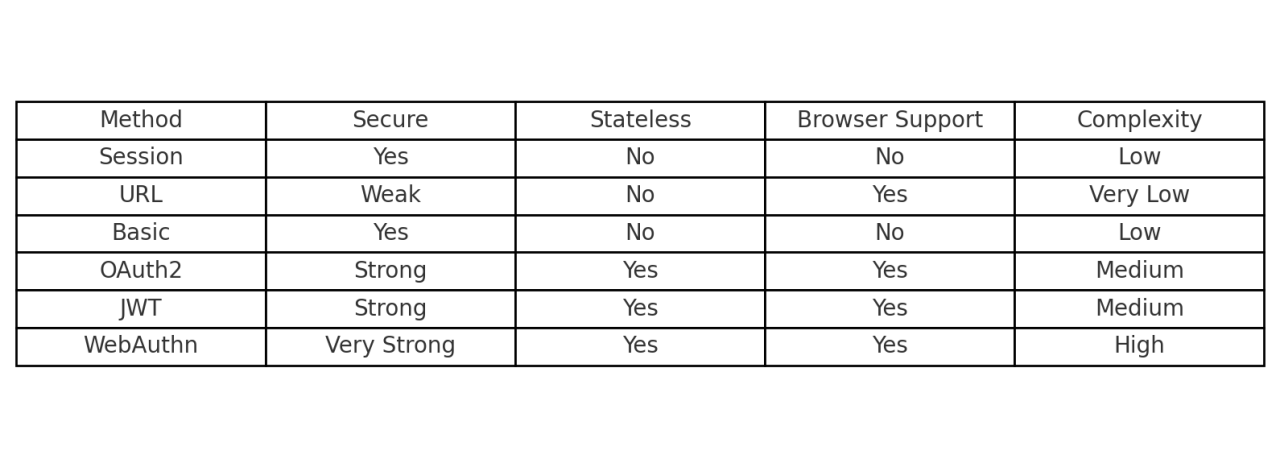

7. Comparison Table
